- Popis produktu
-

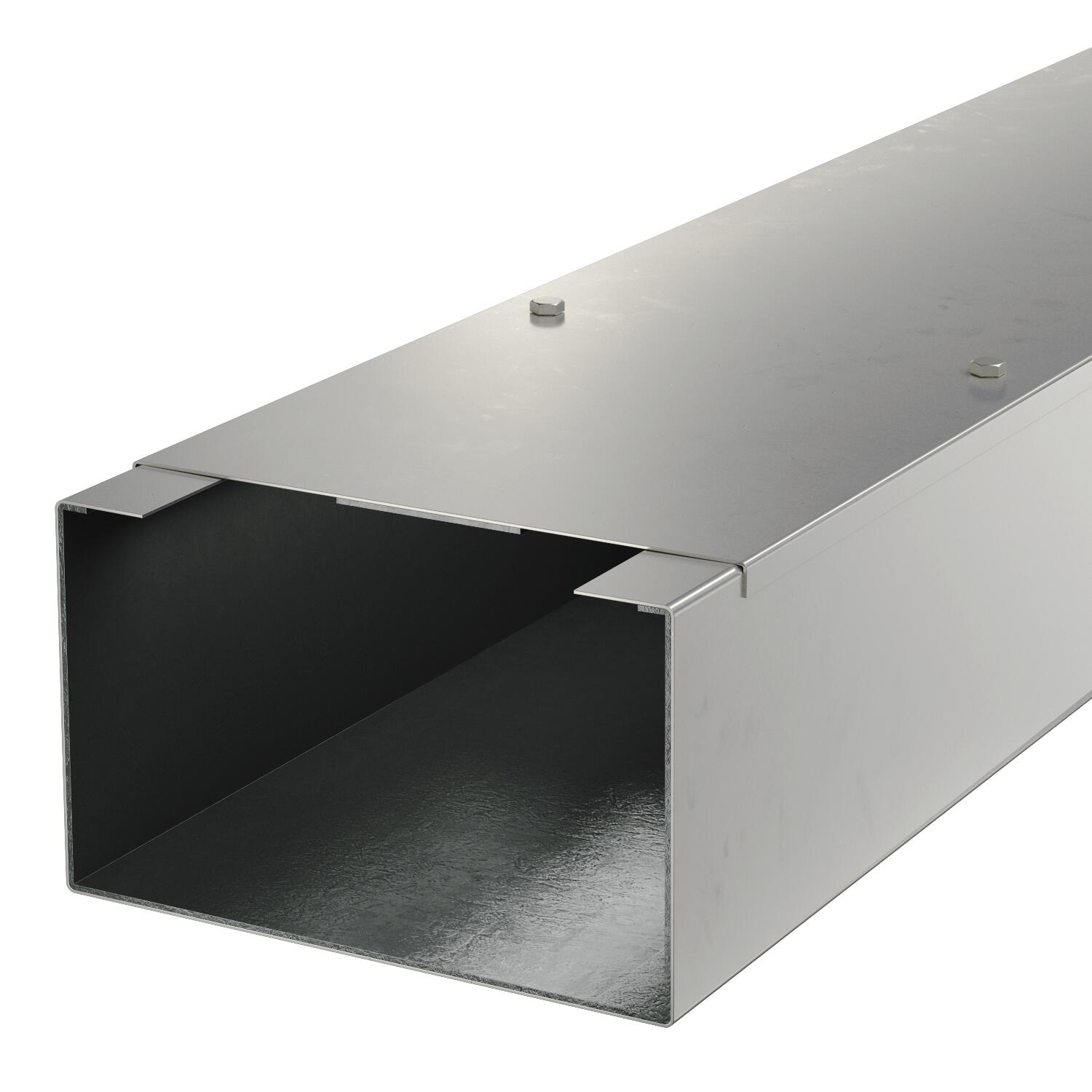

Popis produktuInstallation duct made from metal with intumescent fire protection mesh. Prevents the spread of fire and protects against the impacts of cable fires. Fire resistance of up to 90 minutes. With matching fittings, obstacles in outdoor areas can be overcome easily. Suitable for the mounting on FangFix concrete block. Can be used as a special solution when laying cables over firewalls, according to expert opinion. Solution according to EltAnlagen 2020 of BMI +AMEV. Only certified pre-terminated fittings may be used. Screws included for fastening the duct cover. When used with photovoltaic cables over firewalls, this may need to be coordinated with the relevant authorities.
-
- Technické údaje
-
Technické údaje
CO2 stopa (GWP) od kolísky po bránu 33,2801 kg CO2e / 1 meter Dĺžka 2000 mm Farba nehrdzavejúca oceľ Materiál Ušľachtilá oceľ, nehrdzavejúca 1.4301 Počet strán vystavených plameňu 4 Povrch bez povrchovej úpravy Rozmer 200x120x2000 Rozmer B 200 mm Rozmer H 121 mm Šírka 200 mm Upevnenie veka zaskrutkovať Úžitkový prierez 18500 mm² Výška 120 mm - Všetky typy
- Na stiahnutie
-
List technických údajov PLMR 1220 A2 / 7218200 , 0.14MB , pdfPre tento výrobok nie sú k dispozícii žiadne texty verejnej súťaže.
Slovenská Republika - Slovenčina

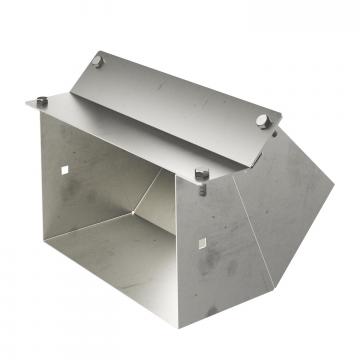

Rising level, for installation duct PLMR
Metal installation duct PLMR for outdoor applications

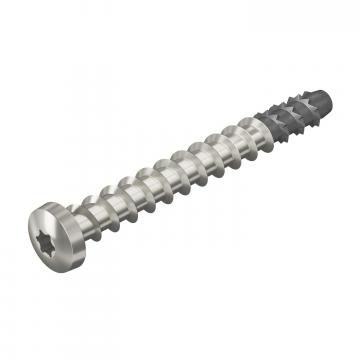

Kotva s kruhovou hlavou MMS-plus P 7,5×75, s drážkou Panhead, z ušlechtilé oceli A4
Betonový podstavec pro systém FangFix min. 10 kg

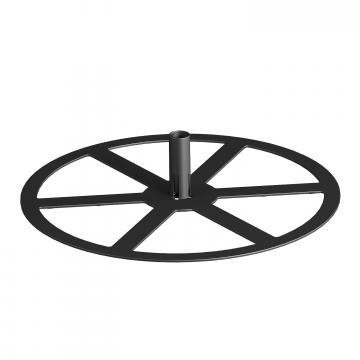

Základna pro systém FangFix 10 kg
